Web Sockets is a next-generation bidirectional communication technology for web applications which operates over a single socket and is exposed via a JavaScript interface in HTML 5 compliant browsers.

Once you get a Web Socket connection with the web server, you can send data from browser to server by calling a send() method, and receive data from server to browser by an onmessageevent handler.

Following is the API which creates a new WebSocket object.

var Socket = new WebSocket(url, [protocal] );

Here first argument, url, specifies the URL to which to connect. The second attribute, protocol is optional, and if present, specifies a sub-protocol that the server must support for the connection to be successful.

WebSocket Attributes:

Following are the attribute of WebSocket object. Assuming we created Socket object as mentioned above:

Attribute	Description
Socket.readyState	The readonly attribute readyState represents the state of the connection. It can have the following values: A value of 0 indicates that the connection has not yet been established. A value of 1 indicates that the connection is established and communication is possible. A value of 2 indicates that the connection is going through the closing handshake. A value of 3 indicates that the connection has been closed or could not be opened.
Socket.bufferedAmount	The readonly attribute bufferedAmount represents the number of bytes of UTF-8 text that have been queued using send() method.

Attribute

Description

Socket.readyState

The readonly attribute readyState represents the state of the connection. It can have the following values:

A value of 0 indicates that the connection has not yet been established.
A value of 1 indicates that the connection is established and communication is possible.
A value of 2 indicates that the connection is going through the closing handshake.
A value of 3 indicates that the connection has been closed or could not be opened.

Socket.bufferedAmount

The readonly attribute bufferedAmount represents the number of bytes of UTF-8 text that have been queued using send() method.

WebSocket Events:

Following are the events associated with WebSocket object. Assuming we created Socket object as mentioned above:

Event	Event Handler	Description
open	Socket.onopen	This event occurs when socket connection is established.
message	Socket.onmessage	This event occurs when client receives data from server.
error	Socket.onerror	This event occurs when there is any error in communication.
close	Socket.onclose	This event occurs when connection is closed.

WebSocket Methods:

Following are the methods associated with WebSocket object. Assuming we created Socket object as mentioned above:

Method	Description
Socket.send()	The send(data) method transmits data using the connection.
Socket.close()	The close() method would be used to terminate any existing connection.

WebSocket Example:

A WebSocket is a standard bidirectional TCP socket between the client and the server. The socket starts out as a HTTP connection and then "Upgrades" to a TCP socket after a HTTP handshake. After the handshake, either side can send data.

Client Side HTML & JavaScript Code:

At the time of writing this tutorial, there are only few web browsers supporting WebSocket() interface. You can try following example with latest version of Chrome, Mozilla, Opera and Safari.

<!DOCTYPE HTML>
<html>
<head>
<script type="text/javascript">
function WebSocketTest()
{
  if ("WebSocket" in window)
  {
     alert("WebSocket is supported by your Browser!");
     // Let us open a web socket
     var ws = new WebSocket("ws://localhost:9998/echo");
     ws.onopen = function()
     {
        // Web Socket is connected, send data using send()
        ws.send("Message to send");
        alert("Message is sent...");
     };
     ws.

What are WebSockets?

WebSockets is a technique for two-way communication over one (TCP) socket, a type of PUSH technology. At the moment, it’s still being standardized by the W3C; however, the latest versions of Chrome and Safari have support for WebSockets.

What do WebSockets Replace?

Websockets can replace long-polling. This is an interesting concept; the client sends a request to the server – now, rather than the server responding with data it may not have, it essentially keeps the connection open until the fresh, up-to-date data is ready to be sent – the client next receives this, and sends another request. This has its benefits: decreased latency being one of them, as a connection which has already been opened does not require a new connection to be established. However, long-polling isn’t really a piece of fancy technology: it’s also possible for a request to time-out, and thus a new connection will be needed anyway.

Many Ajax applications makes use of the above – this can often be attributed to poor resource utilization.

Wouldn’t it be great if the server could wake up one morning and send its data to clients who are willing to listen without some sort of pre established connection? Welcome to the world of PUSH technology!

Step 1: Get the WebSocket Server

This tutorial will focus more on the client building rather than server implementation.

I’m using XAMPP on Windows 7 to run the PHP server locally. Grab a copy of phpwebsockets which is a WebSocket server in PHP. (Note: I experienced some problems with this version, I made some changes to it and will including it in the source files) There are various WebSocket implementations; if one doesn’t work, you can try another or just continue with the tutorial.

jWebSocket (Java)
web-socket-ruby (ruby)
Socket IO-node (node.js)

Start the Apache server

Step 2: Change URLs and Ports

Change the server according to your setup, for example in setup.class.php:

view plaincopy to clipboardprint?
public function __construct($host='localhost',$port=8000,$max=100)
{
    $this->createSocket($host,$port);
}

Browse through the files and make changes where appropriate.

Step 3: Start Building the Client

Lets get a basic template up; this is my client.php file:

view plaincopy to clipboardprint?
<!DOCTYPE html>
<html>
<head>
<script src="http://ajax.googleapis.com/ajax/libs/jquery/1.4.2/jquery.min.js"></script>

<title>WebSockets Client</title>

</head>
<body>
<div id="wrapper">

    <div id="container">

        <h1>WebSockets Client</h1>

        <div id="chatLog">

        </div><!-- #chatLog -->
        <p id="examples">e.g. try 'hi', 'name', 'age', 'today'</p>

        <input id="text" type="text" />
        <button id="disconnect">Disconnect</button>

    </div><!-- #container -->

</div>
</body>
</html>​

So in this code we’re creating a simple template: we have a box for the chat log, an input box, and one disconnect button.

Step 4: Add Some CSS

Nothing fancy, just space some elements out.

view plaincopy to clipboardprint?
body {
    font-family:Arial, Helvetica, sans-serif;
}
#container{
    border:5px solid grey;
    width:800px;
    margin:0 auto;
    padding:10px;
}
#chatLog{
    padding:5px;
    border:1px solid black;
}
#chatLog p {
    margin:0;
}
.event {
    color:#999;
}
.warning{
    font-weight:bold;
    color:#CCC;
}

Step 5: WebSocket Events

First, let’s try and understand the idea of WebSocket events.

The Events

We’ll be using three events:

onopen: When a socket has opened
onmessage: When a message has been received
onclose: When a socket has been closed

But how can we implement this?

First create a WebSocket object

view plaincopy to clipboardprint?
var socket = new WebSocket("ws://localhost:8000/socket/server/startDaemon.php");

And checking for events is as simple as:

view plaincopy to clipboardprint?
socket.onopen = function(){
    alert("Socket has been opened!");
}

But what about when we receive a message?

view plaincopy to clipboardprint?
socket.onmessage = function(msg){
    alert(msg); //Awesome!
}

However, let’s avoid using alert boxes, and actually integrate what we’ve learned into the client page.

Step 6: JavaScript

Ok, so let’s get started. First we put our code in jQuery’s document ready function, then we check whether the user has a WebSockets-enabled browser. If they do not, we append a link to Chrome in the HTML.

view plaincopy to clipboardprint?
$(document).ready(function() {
    if(!("WebSocket" in window)){
        $('#chatLog, input, button, #examples').fadeOut("fast");
        $('<p>Oh no, you need a browser that supports WebSockets. How about <a href="http://www.google.com/chrome">Google Chrome</a>?</p>').appendTo('#container');
    }else{

    //The user has WebSockets

    connect();

    function connect(){
        //the connect function code is below

    }
});

As you can see, if the user has WebSockets then we call a connect() function. This is the core of the functionality: we’ll start with the open, close and receive events.

We’ll define the URL of our server

view plaincopy to clipboardprint?
var socket;
var host = "ws://localhost:8000/socket/server/startDaemon.php";

Wait, where’s the http in that URL? Oh right, it’s a WebSocket URL, so it’s using a different protocol. Here’s a breakdown of the pieces of our URL:

Let’s continue with our connect() function. We will put our code within a try/catch block; so if something goes wrong, we can let the user know. We create a new WebSocket, and pass the message to a message function which I’ll explain later. We create our onopen, onmessage and onclose functions. Note that we also show the user the socket status; this is not necessary, but I’m including it here as it can be helpful for debugging.

CONNECTING = 0
OPEN = 1
CLOSED = 2

view plaincopy to clipboardprint?
function connect(){
    try{

    var socket;
    var host = "ws://localhost:8000/socket/server/startDaemon.php";
    var socket = new WebSocket(host);

        message('<p class="event">Socket Status: '+socket.readyState);

        socket.onopen = function(){
             message('<p class="event">Socket Status: '+socket.readyState+' (open)');
        }

        socket.onmessage = function(msg){
             message('<p class="message">Received: '+msg.data);
        }

        socket.onclose = function(){
             message('<p class="event">Socket Status: '+socket.readyState+' (Closed)');
        }

    } catch(exception){
         message('<p>Error'+exception);
    }
}

The message() function is fairly simple, it takes in some text that we want to show the user and appends it to the chatLog. We create the appropriate class for paragraph tags in the socket event functions which is why there is only one closing paragraph tag in the message function.

view plaincopy to clipboardprint?
function message(msg){
    $('#chatLog').append(msg+'</p>');
}

So Far…

If you’ve been following up to this point, well done! We’ve managed to create a basic HTML/CSS template, create and establish a WebSocket connection and keep the user updated as progress was made with the connection.

Step 7: Sending Data

Now rather than having a submit button, we can detect when the user presses return on their keyboard, and run the send function. The ’13′ you see below is the ASCII key for the enter button.

view plaincopy to clipboardprint?
$('#text').keypress(function(event) {
    if (event.keyCode == '13') {
        send();
    }
});

And here’s the send() function:

view plaincopy to clipboardprint?
function send(){

    var text = $('#text').val();
    if(text==""){
        message('<p class="warning">Please enter a message');
        return ;
    }
    try{
        socket.send(text);
        message('<p class="event">Sent: '+text)
    } catch(exception){
    message('<p class="warning"> Error:' + exception);
    }

    $('#text').val("");

}

Remember what you see above may be a chunky bit of code, but in reality, the code we really need is:

view plaincopy to clipboardprint?
socket.send(); //Thanks JavaScript

The extra code is doing a number of things: detecting if the user didn’t enter anything but still hit return, clearing the input box, and calling the message functions.

Step 8: Closing the Socket

Closing the socket is fairly straightforward: attach a click handler to our disconnect button and we’re done!

view plaincopy to clipboardprint?
$('#disconnect').click(function(){
    socket.close();
});

The Completed JavaScript

view plaincopy to clipboardprint?
$(document).ready(function() {

  if(!("WebSocket" in window)){
  $('#chatLog, input, button, #examples').fadeOut("fast");
  $('<p>Oh no, you need a browser that supports WebSockets. How about <a href="http://www.google.com/chrome">Google Chrome</a>?</p>').appendTo('#container');
  }else{
      //The user has WebSockets

      connect();

      function connect(){
          var socket;
          var host = "ws://localhost:8000/socket/server/startDaemon.php";

          try{
              var socket = new WebSocket(host);

              message('<p class="event">Socket Status: '+socket.readyState);

              socket.onopen = function(){
                 message('<p class="event">Socket Status: '+socket.readyState+' (open)');
              }

              socket.onmessage = function(msg){
                 message('<p class="message">Received: '+msg.data);
              }

              socket.onclose = function(){
                message('<p class="event">Socket Status: '+socket.readyState+' (Closed)');
              }

          } catch(exception){
             message('<p>Error'+exception);
          }

          function send(){
              var text = $('#text').val();

              if(text==""){
                  message('<p class="warning">Please enter a message');
                  return ;
              }
              try{
                  socket.send(text);
                  message('<p class="event">Sent: '+text)

              } catch(exception){
                 message('<p class="warning">');
              }
              $('#text').val("");
          }

          function message(msg){
            $('#chatLog').append(msg+'</p>');
          }

          $('#text').keypress(function(event) {
              if (event.keyCode == '13') {
                send();
              }
          });

          $('#disconnect').click(function(){
             socket.close();
          });

      }//End connect

  }//End else

});

Step 9: Run the WebSocket Server

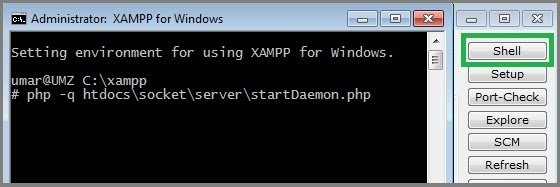

We will need command line access. Luckily, XAMPP has a handy shell option. Click ‘Shell’ on the XAMPP control panel, and type in:

php -q path\to\server.php

You have now started a WebSocket server!

Finished

When the page loads, a WebSocket connection will attempt to be established (try editing the code so the user has connect/disconnect option). Then, the user can enter messages and receive messages from the server.

That’s it!

Thanks for reading; I hope you enjoyed this tutorial! Remember, as exciting as WebSockets may be, things may change. You can refer here to keep up to date on the W3C WebSocket API.
